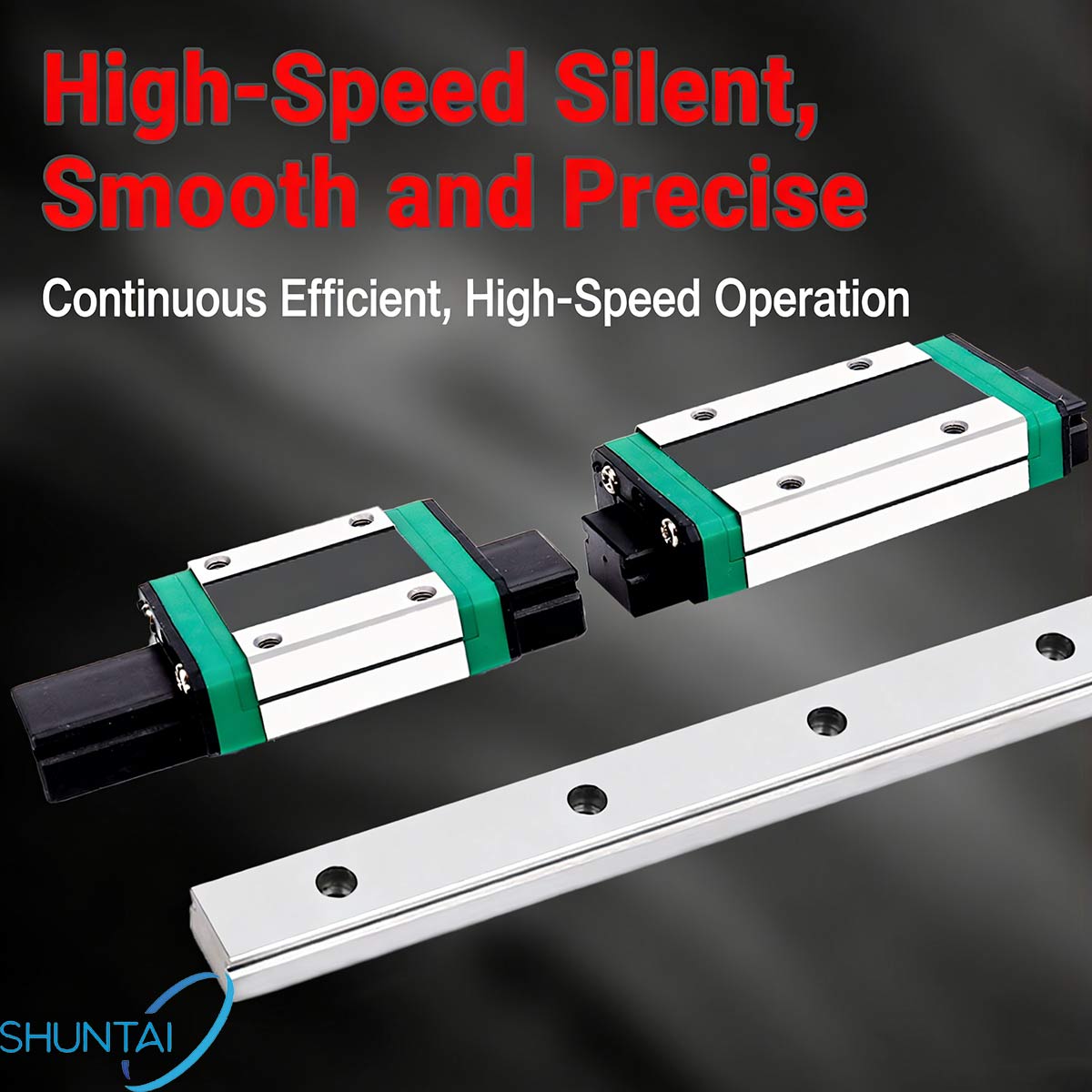

Looking for a compact, high-performance linear motion guide for your precision machinery? Our Shuntai MTW-C/-H miniature linear guide delivers ultra-precise, stable linear movement, perfectly engineered for small-space, high-accuracy equipment scenarios.
Mini linear guides act as mechanical guiding systems that enable precise linear travel. Assembled with rails, sliding blocks, and rolling steel balls or rollers, they combine high precision, rigidity, and repeat positioning accuracy to solve all your linear motion control challenges.
Core Advantages of Our MTW-C/-H Mini Linear Guide
1. Ultra-High Positioning Precision
Adopting ball/roller rolling contact design, our miniature linear guide minimizes position deviation and return error. It maintains consistent positioning repeatability, ideal for equipment that demands strict micron-level position control.
2. Superior Structural Rigidity
Optimized rail and slider structure greatly boosts load capacity, supporting heavy axial and radial loads simultaneously. It suppresses vibration and mechanical deformation during operation, keeping motion smooth and stable under long-term running.
3. Low Friction & High Operating Efficiency
Rolling contact replaces traditional sliding friction, drastically cutting motion resistance. Less friction loss means lower energy consumption, faster operation speed and higher overall equipment efficiency.
4. Quiet, Smooth Operation
Compact integrated structure with stable rolling elements eliminates jitter and abnormal noise during travel. It delivers silent, vibration-free running, suitable for lab, medical and optical equipment that requires low-noise working environments.
5. Flexible Custom Sizes & Configurations
We offer a full range of sizes and customizable specifications for the MTW-C/-H series. You can select matching models based on your actual load weight, running speed and limited installation space. OEM & ODM customization services are fully supported to match unique machine designs.
6. Long Service Lifespan
Premium raw materials and precision machining extend the service cycle of our linear guides, reducing your equipment maintenance frequency and replacement costs in the long run.
Wide Application Scenarios
Shuntai MTW-C/-H miniature linear guides are widely adopted across multiple precision industries:
- Automated assembly equipment
- Semiconductor manufacturing machinery
- Medical diagnostic & treatment devices
- Optical inspection & testing instruments
- 3D printing equipment
- Micro precision processing systems
These sectors all rely on stable, repeatable linear travel tracks. Our mini linear guides fully meet strict standards for precision, reliability and consistency in these high-end applications.

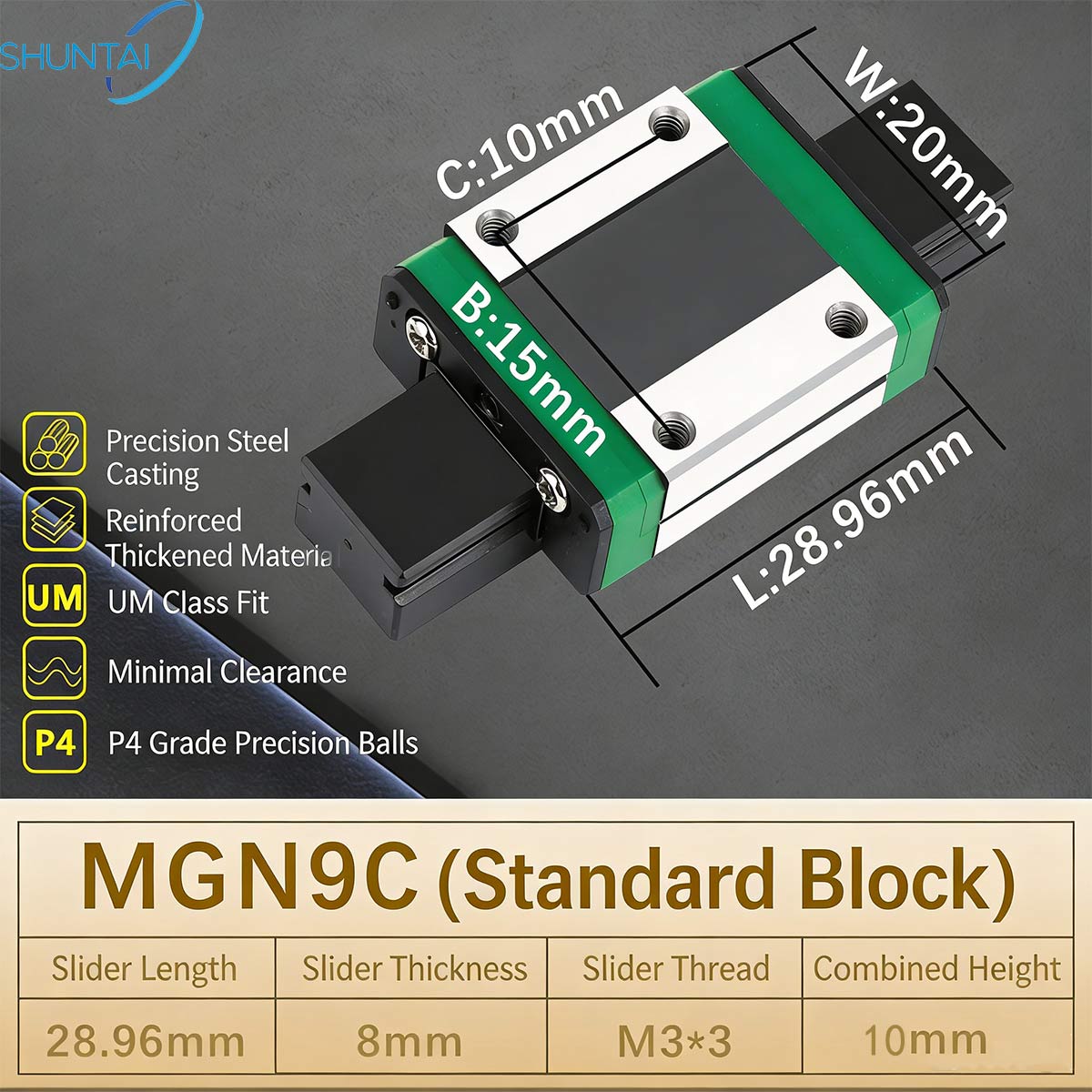

Product Basic Specs Overview
| Item |
Details |
| Product Name |
Mini Linear Motion Guide |
| Model |
MTW-C/-H |
| Brand |
Shuntai |
| Core Components |
Guide Rail, Slider, Rolling Balls/Rollers, Bearing Parts |
| Main Application |
Automated Precision Systems |
| Key Feature |
Long Service Life, High Precision, Low Noise |
| Lead Time |
7 Days for Standard Models |
| Shipping Port |
Shanghai, China |
Why Choose Shuntai Mini Linear Guides?
- 1.Strict factory quality control for consistent precision performance
- 2.Flexible OEM & ODM support to match your custom machinery demands
- 3.Fast 7-day delivery for standard stock sizes to shorten your production cycle
- 4.Stable supply chain with shipping from Shanghai for global logistics convenience
- 5.Professional technical support to help you select the correct guide model according to your load and space requirements
Get Your Custom Linear Guide Solution Today
-
If you’re sourcing reliable miniature linear guides for your automation, medical, optical or 3D printing machines, our MTW-C/-H series is your ideal cost-effective precision motion partner.
Click the consultation button to send us your equipment parameters, and our engineering team will provide a tailored linear guide recommendation and quotation quickly.
